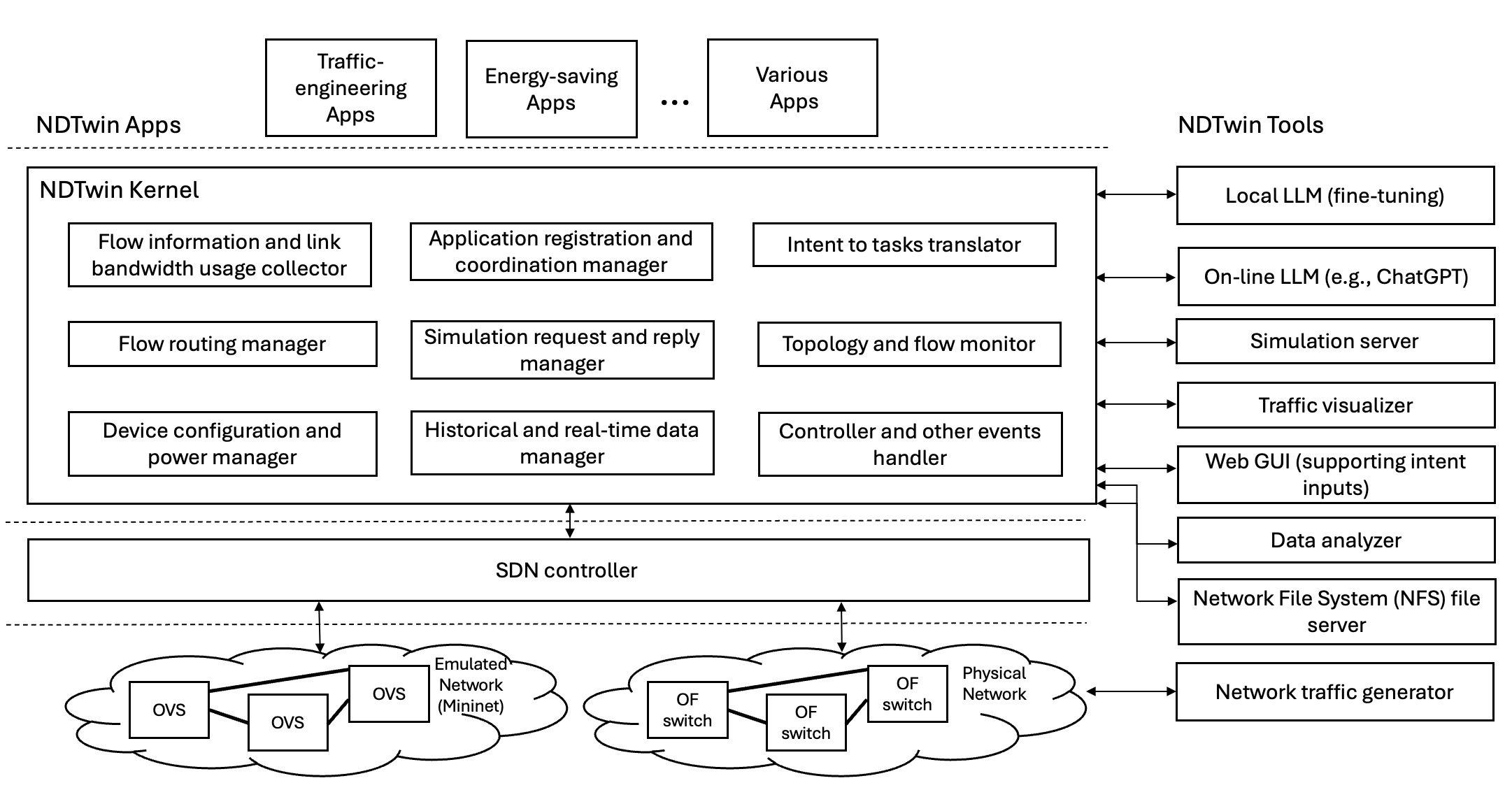

System Architecture

Applications

The application component consists of various applications developed on the NDTwin platform. An NDTwin application is developed for achieving a specific optimization goal such as load-balancing or anomaly detection. Currently, NDTwin provides the Traffic-engineering App and Energy-saving App. More applications will be added by the NDTwin development team in the future. Additionally, anyone can develop his/her own applications by using the NDTwin open source project.

Each NDTwin application is a separate program running independently, and it communicates with the NDTwin Kernel via RESTful APIs to get services from the kernel or request the kernel to control specified network switches. An NDTwin application can provide its RESTful APIs to the kernel. Doing so enables the kernel to asynchronously send notifications, data, or requests to it.

This RESTful APIs-based design provides many advantages as follows:

• Easy Integration: NDTwin applications can be independently developed and written in different programming languages. They can be implemented as single-threaded or multi-threaded programs to best fit their needs.
• High Performance: Since each NDTwin application runs as an independent process, multiple NDTwin applications can run simultaneously over the multiple CPU cores of a server to increase their aggregate processing throughput. For those NDTwin applications that are CPU-bound, they can simultaneously run on different servers to further boost their aggregate processing throughput.
• Fault Isolation: Since each NDTwin application runs as a different process, a faulty or buggy NDTwin application will not crash, block, or slow down the operations of the NDTwin Kernel or other NDTwin applications.

Tools

Like an NDTwin application, an NDTwin tool is a process that uses RESTful APIs to communicate with the kernel bidirectionally. While the goal of an NDTwin application is to optimally control the network, the goal of an NDTwin tool is to support the NDTwin Kernel or the NDTwin user. Similar to NDTwin applications, NDTwin tools can all run on a single server or separately run on different servers to achieve more computational and storage resources.

The tools that are currently included in NDTwin are listed as follows:

• Web GUI: This tool provides Web-based GUI to the NDTwin user. The NDTwin user can use any web browser to run up this tool to easily view the real-time states of the network and flows or control the network in real time. This tool supports an LLM-powered intent-based network management interface.
• Network Traffic Visualizer: This tool has a GUI by which the NDTwin user can “see” how the packets of flows are traversing over the network in real time.
• Network State Recorder: This tool, once enabled, will continuously record the states of network switches and flows into files. The Web GUI tool and the network traffic visualizer can open these files for non-real-time checks and playback, respectively.
• Network Traffic Generator: This tool set can be used to automatically generate many flows and launch the sending and receiving programs of these flows on the hosts of the network without human efforts. It is very useful to test the functions and evaluate the performance and effectiveness of an NDTwin application under development.
• Simulation Platform Manager: NDTwin has a general-purpose simulation platform where different-purpose simulators can be pre-installed. When the simulation platform manager receives a simulation request issued by an NDTwin application, it will launch the simulator specified in the request to run the simulation. Because each received simulation request is executed by a launched simulator process, multiple simulations can run in parallel over multiple CPU cores to quickly find the best simulation result. Because the NDTwin application needs to pass the simulation input file to the simulator and the simulator needs to pass its simulation output file to the NDTwin application, NDTwin uses the Network File System (NFS) scheme to facilitate file sharing between NDTwin applications and simulators.
• On-line LLM (e.g., ChatGPT): This tool refers to an on-line Large Language Model (LLM) website. The Web GUI tool supports intent-based network management by intelligently prompting the on-line LLM (e.g., ChatGPT).
• Local LLM (fine-tuning): Because using the services provided by an on-line LLM website incurs token costs and add delays to the prompting, we are trying to fine-tune an open source LLM model to solve these problems.

Kernel

The kernel is the heart of NDTwin. It is implemented as a high-performance C++ program that runs as a multi-threaded process for achieving high throughput and low latency.

The kernel acts as the digital twin of the network and thus has real-time states of network switches and flows. It provides a set of RESTful APIs by which any other process (e.g., an NDTwin application or an NDTwin tool) can get real-time information from the kernel or request the kernel to control specific network switches. The kernel can also call the RESTful APIs provided by an NDTwin application (or an NDTwin tool) to actively notify it of a specific situation or asynchronously transfer data/results to it.

The core modules that are currently included in the kernel are explained as follows:

• Flow Information and Link Bandwidth Usage Collector: This module acts as a high-speed telemetry engine using the sFlow scheme, which samples packets on switches and is an industry standard supported by all switches. In an NDTwin-managed network, all switches in the network use sFlow to sample packets arriving on every port and send samples to NDTwin. This module runs a non-blocking sample listener to process two types of sFlow samples: (1) Flow sample: This module will extract 5-tuple information (Src/Dst IP, Src/Dst Port, Protocol) in sampled packet headers to detect flows and calculate their current sending rates. (2) Link counter sample: This module will use packet and byte counters in the samples to calculate real-time link bandwidth usage and unused bandwidth on a link.
• Topology and Flow Monitor: This module maintains an in-memory graph representation of the network. Whenever the SDN controller detects topology changes (e.g., Link Recovery/Failure or Switch Join/Leave), it will call the kernel API to notify this module. With these immediate notifications, this module keeps the in-memory network topology up to date at any time. Based on continuously received sFlow flow samples, this module real-time updates the flows detected on every link and their current sending rates. Such information are used by the Web GUI tool and Network Traffic Visualizer for real-time flow traffic visualization.
• Flow Routing Manager: This module utilizes SDN capabilities to manage routing entries on OpenFlow switches. It allows for dynamic installation, modification, and deletion of routing rules to support traffic rerouting scenarios based on the decisions made by NDTwin applications.
• Device Configuration and Power Manager: This module manages the physical states of network switches beyond standard OpenFlow capabilities: (1) For Configuration: This module retrieves switch configuration information via SNMP and SSH, (2) For Power Control: This module controls switch power status (On/Off) using APIs from intelligent smart plugs, enabling energy-saving applications.
• Application Registration and Coordination Manager: Each NDTwin application process should register with this module to get its unique run-time ID. This ID can be included in the simulation requests issued by an NDTwin application to the kernel. Based on this ID, the kernel can asynchronously send back the simulation replies to the correct NDTwin application process. The Simulation Platform Manager also uses this ID to create a separate folder in which all simulation input and output files associated with a specific NDTwin application process are stored. By providing lock APIs, this module coordinates the actions among different NDTwin applications to prevent conflicting network policies from being executed (e.g., one NDTwin application tries to power off a switch to save energy consumption while another NDTwin application is using the same switch for traffic engineering).
• Simulation Request and Reply Manager: This module forwards the simulation requests issued by NDTwin applications to the Simulation Platform Manager for execution. When the Simulation Platform Manager completes a simulation and sends the simulation reply to the kernel, this module will forward the reply to the NDTwin application that issues the request.
• Controller and Other Events Handler: This module uses asynchronous I/O mechanism to efficiently handle all events from the SDN controller, NDTwin applications, and NDTwin tools. Each event is a RESTful API request issued by one of these external processes and will be processed by a thread that is created on the fly to maximize the processing throughput and minimize the processing latency.
• Intent to Tasks Translator: The Web GUI tool supports the intent-based network management interface by which the NDTwin user can use natural language to express their intents to manage the network. This module works with the Web GUI tool and will prompt an on-line LLM (e.g., ChatGPT) to translate the input intents to the corresponding tasks. To perform these translated tasks, this module will call the internal functions of related modules in the kernel.
• Data Cache Manager: This module caches the states of network (e.g., the routing entries on a switch or the network topology) that change infrequently. When NDTwin applications or NDTwin tools issue requests to the kernel to retrieve the data, this module will provide the cached data without issuing commands to network switches to refetch the data. Instead, this module will issue refetch commands to network switches only when the data has changed on the switches. This design enables the kernel to provide the requested data to NDTwin applications and NDTwin tools very quickly and prevents network switches from overloading with frequent requests.

Network

The network represents the target network that is operated and managed by NDTwin:

• Control Plane:
  • NDTwin uses an SDN Controller (e.g., Ryu) to control the switches in real time. To be controlled by NDTwin, the switches need to support the OpenFlow protocol. To achieve high reliability, following the network industry’s management scheme, the machine on which the NDTwin Kernel runs and all switches that the NDTwin Kernel controls are interconnected by a management network that is different from the data network used to transfer users’ data packets. In the market, all managed network switches of all brands provide a management interface (port) for the management purpose. This interface can be used to connect a switch to the management network.
• Data Plane:
  • NDTwin can correctly operate the following two types of data networks:
    • Emulated Network: This type of data network is constructed by Mininet with Open vSwitch (OVS). Note that OVS supports OpenFlow. For this type of data network, its management network is implicitly the memory of the server on which Mininet is run.
    • Physical Network: This type of data network is composed of hardware switches that support OpenFlow (e.g., Brocade and HPE, which are used in our hardware testbed network). For this type of data network, its management network is a separate hardware management network as described above.

Resources Consideration

Due to the design of NDTwin, all NDTwin application processes, tool processes, the kernel process, and the SDN controller process (and even the Mininet process if Mininet is used as the emulated data network) can run together on a server. This configuration enables the NDTwin user to use just one server to run up NDTwin.

When using NDTwin to operate a very large network with a huge number of flows, if the computational and storage resources of a server are insufficient for NDTwin to perform optimally, the NDTwin applications, tools, kernel, and SDN controller can run simultaneously on different servers if needed. In this usage case, these different servers should be interconnected by the managament network over which the NDTwin Kernel controls all switches. This way, the RESTful API requests and replies exchanged among them will not be affected by the traffic transmitted on the data network.

Although NDTwin can correctly and successfully operate a network emulated by Mininet, since running an emulation consumes considerable CPU and memory resources, experiment results show that when the sending rates of flows in an emulated network are set to high values, the emulated network will run very slowly. This problem is caused by emulation, not NDTwin.
